Bike Shelter - Alpha Design by Apex Shelter Systems

Alpha Bike Shelter


Alpha Tep iR Bike Shelter with Transparent Roof and End Panels

Contemporary Bike Shelter suitable to accommodate cycles and/or motorcycles. Cycle racks can be adapted to hold junior cycles and/or scooters.
Motorcycles can be free-standing or the shelter can be manufactured with an integral locking rail to the rear of the shelter so motorcycles can be secured via chain or D lock. Lockers can also be incorporated into the shelter.


Single Unit Length: 2560mm, 3060mm, 4060mm and 5060mm
Capacity: 6 cycles or 2-3 motorcycles, 8 cycles or 3-4 motorcycles, 10 cycles or 4-5 motorcycles, 12 cycles or 5-6 motorcycles respectively.
Overall width: 2100mm
Height to front: 2100mm
Finish: Available in hot dipped galvanised BS EN ISO 1461:1999 or polyester powder coated to a standard BS or RAL Colour

Roofing: Plastisol Coated Steel to a standard BS or RAL Colour (Alpha P) or 5mm thick transparent PET (Alpha T)
End Panels: End Panels can be clad with clear PET, solid steel or galvanised weld mesh to extra securityFixing: Adjustable base plates for bolting to concrete or extended legs for submerging into concrete
Construction: Shelters can be linked to form continuous runs.

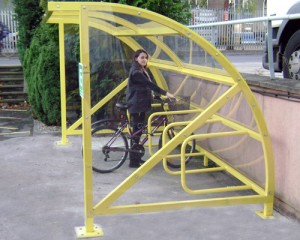

Alpha Tep iR8 Cycle Shelter


Bike Shelters have been designed for ease of installation and are supplied in a flat pack form with full technical installation instructions. Alternatively, a full nationwide installation service is available including ground-works.
Please contact the sales office for further information.

Alpha Tep iR Bike Shelter

Loading: Integral fully welded cycle rack or floor mounted cycle rack with 3 point locking system which which can be compliant with BREEAM or Sustainable Homes


Alpha Bike Shelters can be supplied any length to suit your requirements.

Bike Shelter with Plastisol Roof

Alpha Pep iR Cycle Rack and Shelter with Plastisol Roof and Clear End Panels

Bike Shelter with toast rack design sheffield racks

Alpha Pep iR Cycle Rack and Shelter with Plastisol Roof and Clear End PanelsAlpha Tep iR Cycle Shelter

Alpha Bike Shelters
